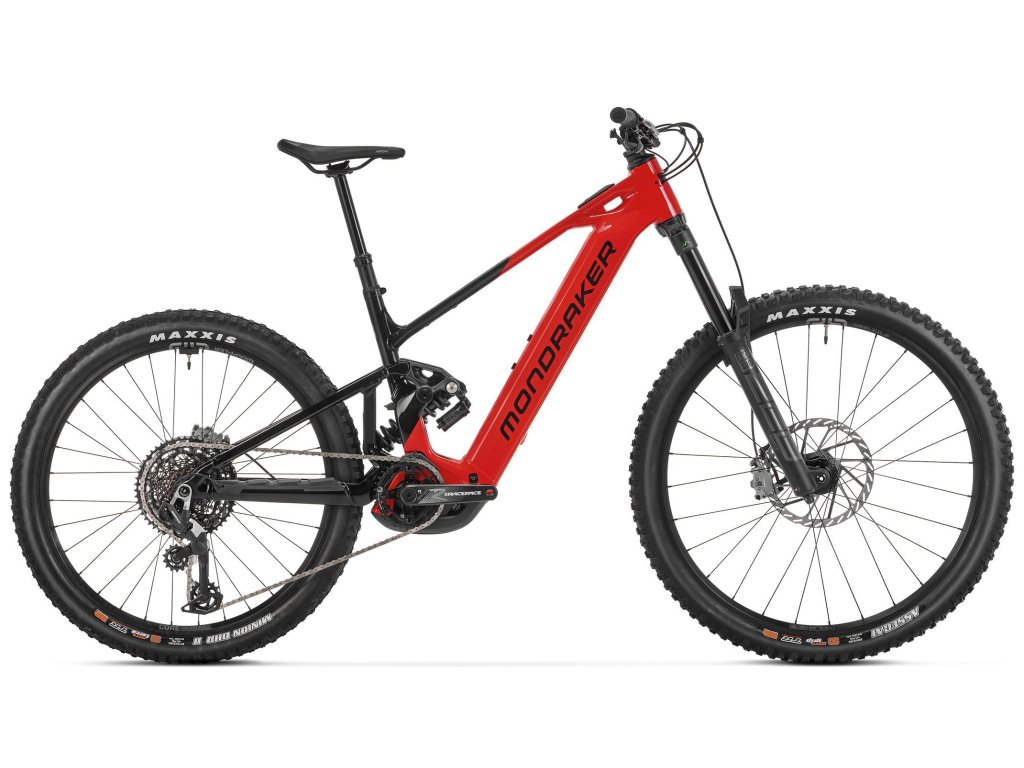

MONDRAKER Level R, chili red
Level R je vašou vstupenkou na inú úroveň endura.
Garancia kvality servisu
my Vás v tom nenecháme
Nájdete nás priamo v centre
mesta Púchov
Problém s prepravou?
na akúkoľvek adresu v našom okolí, prídeme po Váš bicykel a spravíme mu potrebný servis
Level R je vašou vstupenkou na inú úroveň endura. Ako najdostupnejší model v novom rade je vybavený motorom Bosch Performance Line CX piatej generácie, ktorý teraz poskytuje výkon až 750 W a krútiaci moment 100 Nm (s najnovšou aktualizáciou softvéru), spárovaným s masívnou 800 Wh batériou, ktorú je možné ľahko vybrať cez elegantný karbónový prístupový panel na spodnej rámovej trubke.
| Technické parametre | |
|---|---|
| Rám | Level 6061 Alloy Stealth Evo, Updated Zero Suspension System, Mullet, 170mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, exclusive plastic motor covers |
| Vidlica | RockShox ZEB Select Charger RC 29, 180mm, e-bike approved, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: low-speed compression, low-speed rebound, air preload |
| Prevody | 12 |
| Prehadzovačka | Sram 90 Eagle T-Type, 12s |
| Gripy | Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size |
| Brzdy | Sram Maven Bronze, 18 and 19.5-millimeter 4-piston caliper, HS2 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
| Hlavové zloženie | Onoff ZS44/ZS56, 1-1/8", 1.5" head tube, ACB sealed bearings, top 42x30x7x45?x45?, bottom 52x40x8x45?x45? |
| Brzdové páčky | Sram Maven Bronze , SwingLink and lever pivot bushings, tools-free reach adjust |
| Prevodník | Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD CL55 |
| Kľuky | Race Face Aeffect ebike, All sizes: 160mm |
| Reťaz | Sram 70 Eagle T-Type, 12s, Powerlock |
| Kazeta | Sram XS-1270, 10-52T, T-Type, 12s |
| Predný náboj | e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts |
| Zadný náboj | e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG freehubn |
| Plášte | Maxxis Assegai 29x2.6WT, tubeless ready, 3C Maxx Grip compound, DD protection, 120x2TPI, folding bead |
| Ráfiky |
e*thirteen Grappler Core, Hookless 6066 Welded Aluminum n30mm internal width, tubeless ready, 28F spokes 29 front, 27'5 rear |
| Riadidlá | Onoff S3 1.0 6061 alloy, rise: 25mm, width: 800mm, 8? backsweep, 5? upsweep, 31.8mm barbore. L and XL size: 38mm rise. |
| Predstavec | Onoff S3 30mm 0?, 6061 forged alloy, 31.8mm barbore |
| Sedlovka | Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm) |
| Sedlo | FIZIK Terra Aidon X5 145mm |
| Tlmič | RockShox Vivid Coil base, 205x65mm. Settings: external bottom out, low-speed rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings |
| Motor | Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y) |
| Batéria | Bosch Powertube 800Wh |
| Hmotnosť | 26,5 kg |
Dodatočné parametre
| Kategória: | eMTB |
|---|---|
| Záruka: | 2 roky |
